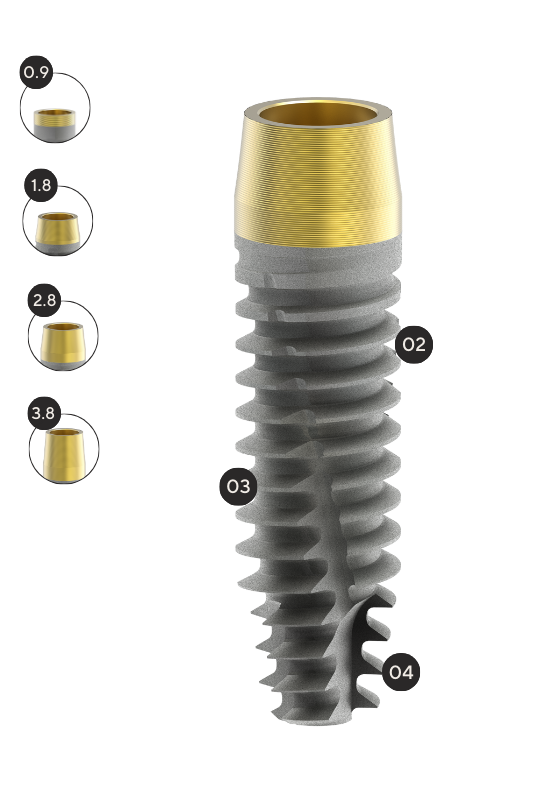

The IL implant is available in four distinct neck heights (0.9 mm, 1.8 mm, 2.8 mm, and 3.8 mm) to seamlessly adapt to varying soft tissue biotypes and crestal bone anatomies. The micro-grooved surface (50 μm pitch) promotes superior cellular adhesion and activation. Additionally, the yellow-gold anodized coloring of the neck enhances biomimetic integration within the transmucosal pathway.

The implant body features a slightly tapered macro-morphology engineered to support, promote, and significantly enhance primary stability.

The outer profile of the apical threads is intentionally tapered, featuring a specifically calculated angle of conicity to facilitate smooth and precise insertion into the osteotomy.

These notches facilitate the initial threading process, ensuring immediate and precise engagement of the implant into the bone for optimal advancement and self-tapping efficiency.
